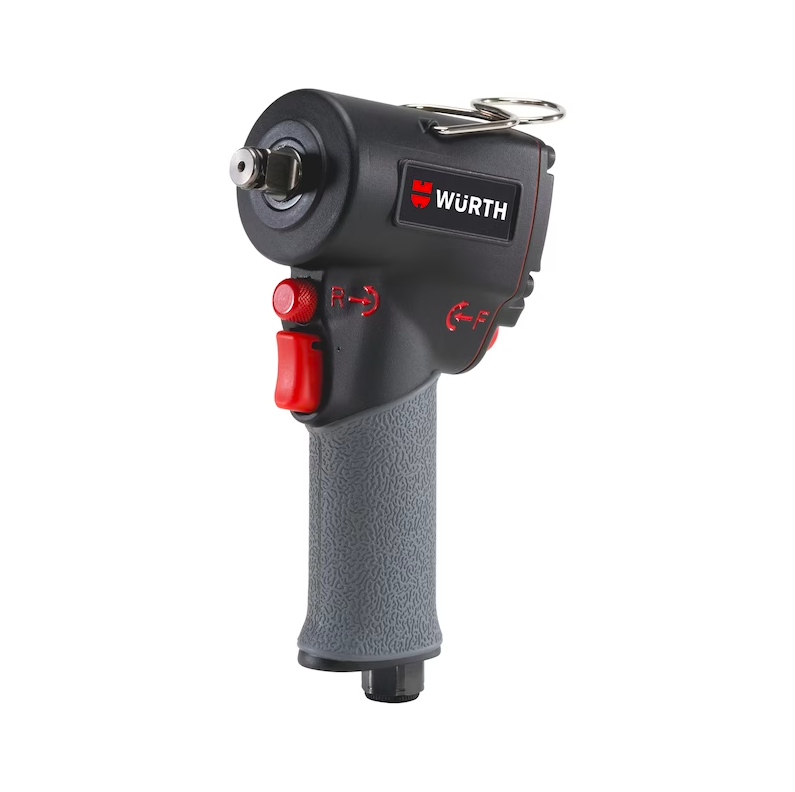

Wurth Pneumatic Impact Screwdriver Compact Gun type Power Tool
Wurth Pneumatic Impact Screwdriver Compact Gun type Power Tool
The Retail Store
Low stock: 4 left
Couldn't load pickup availability
Very powerful yet compact pneumatic impact screwdriver with outstanding power-to-weight ratio. Maximum recommended screw size: M16.
Long service life and optimal balance distribution
-Rugged, well-balanced unit in aluminium housing.

Very handy and user-friendly
- Rubberised handle prevents unpleasant cooling
 - User-friendly clockwise/anti-clockwise changeover and adjustable button

Compact and extremely powerful jumbo hammer mechanism
- High power development with small size and low weight, up to 1,100 Nm breakaway torque.
Optimum and user-friendly adjustment to any application, at any time
-Three-stage power setting for clockwise rotation, with sensitive trigger
Notice
- Impact screwdrivers are not torque screwdrivers. Connections requiring a specific torque must be checked by means of a torque measuring device after tightening with the impact screwdriver.
 - When the impact screwdriver is used regularly, a little oil should be added daily through the compressed air supply.
 - Plug-in nipple not included in the scope of delivery

Application area
Ideal where space is limited, e.g. gearbox, engine compartment, brakes


|
			 Type description  |

			 DSS 1/2 inch Compact  |

|
			 Tool holding device  |

			 1/2-inch external square  |

|
			 Max. working torque  |

			 678 Nm  |

|
			 Max. releasing torque  |

			 1100 Nm  |

|
			 Sound-pressure level  |

			 102 dB  |

|
			 Vibration  |

			 7.5 m/s²  |

|
			 Operating pressure  |

			 6.3 bar  |

|
			 Weight of machine  |

			 1.34 kg  |

|
			 Min. hose inner diameter  |

			 9 mm  |

|
			 Air consumption  |

			 122 l/min  |

|
			 Connection thread  |

			 1/4 inch  |

|
			 Length x width x height  |

			 109 x 57 x 188 mm  |

Share
SKU:V563-57143020
